1. Adopting a worm gear and worm backward-tilting lifting pole, with a maximum height of 1.8 meters, compatible with universal pan-tilt mounting. 2. Capable of continuous operation during lifting, overcoming the defect of traditional products that cannot work continuously while lifting. 3. Excellent wind resistance; maximum withstand wind speed: 110 km/h (when the system is retracted). 4. Maximum load-bearing capacity: 20 kg. 5. Integrated design saves space and wiring, enabling quick and convenient installation. 6. Vehicle power input voltage range: DC12V±10%. 7. Dual control mode; the lifting, lighting, rotation and other functions can be operated via wireless remote control and RS485 communication. 8. Ingress protection rating: IP66. 9. Built-in power reverse connection protection; no equipment damage caused by positive and negative power polarity reversal.
Model | HRZC-18SJ |
Working Mode | Worm gear and worm + air pump lifting |

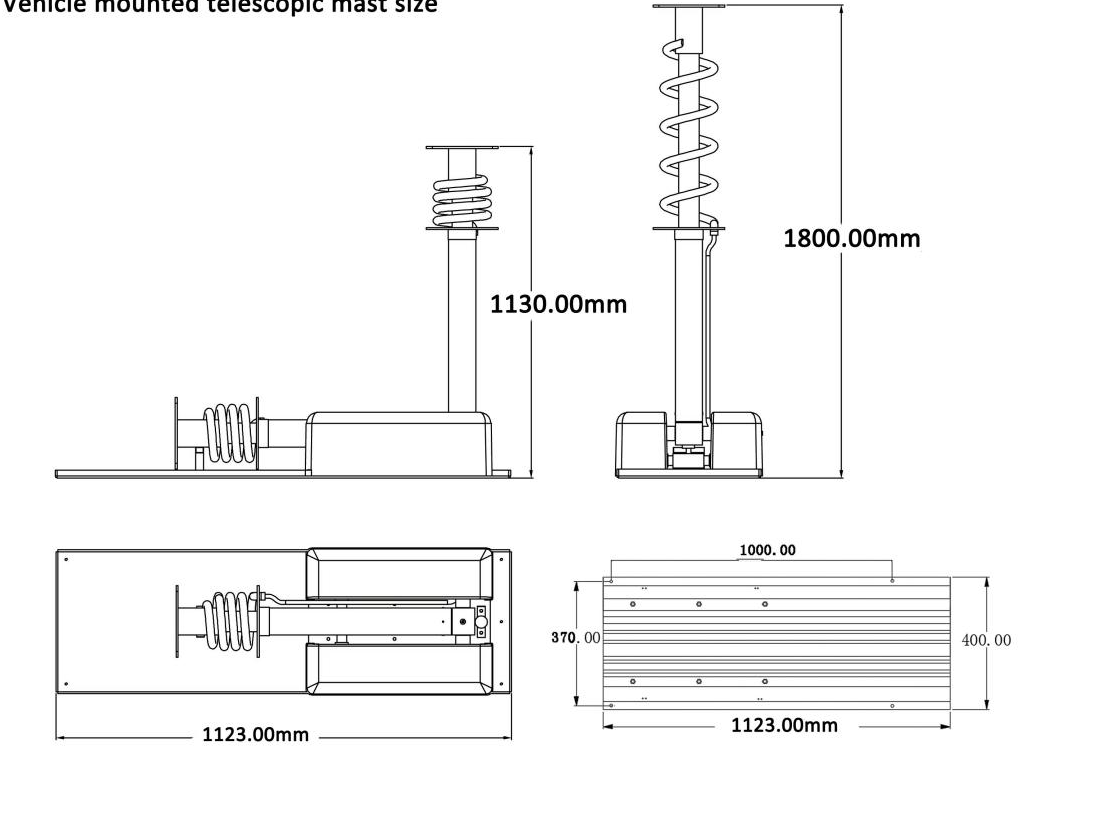

Height | 1.8 Meters |
Moving Arc | 0-90 Degrees |
Maximum Load Capacity | 20 Kilograms |
Platform Operation | Arc Movement + Vertical |
Horizontal & Vertical Rotation Speed | 6r/min |
Wind Resistance | 66Km/h |
Control Mode | RS485, Pelco-D/P Protocol, Remote Controller |
LED Light | 2*120W |
Lumen | 24000lm |
Lighting | Spotlight / Floodlight |
Material | Aluminum Alloy Shell |
Weight | 45kg |
System Operating Voltage | DC12V-10A |
