Outdoor High-power Search Flashlight

Model: HRZC-KC11

Leave a Message >

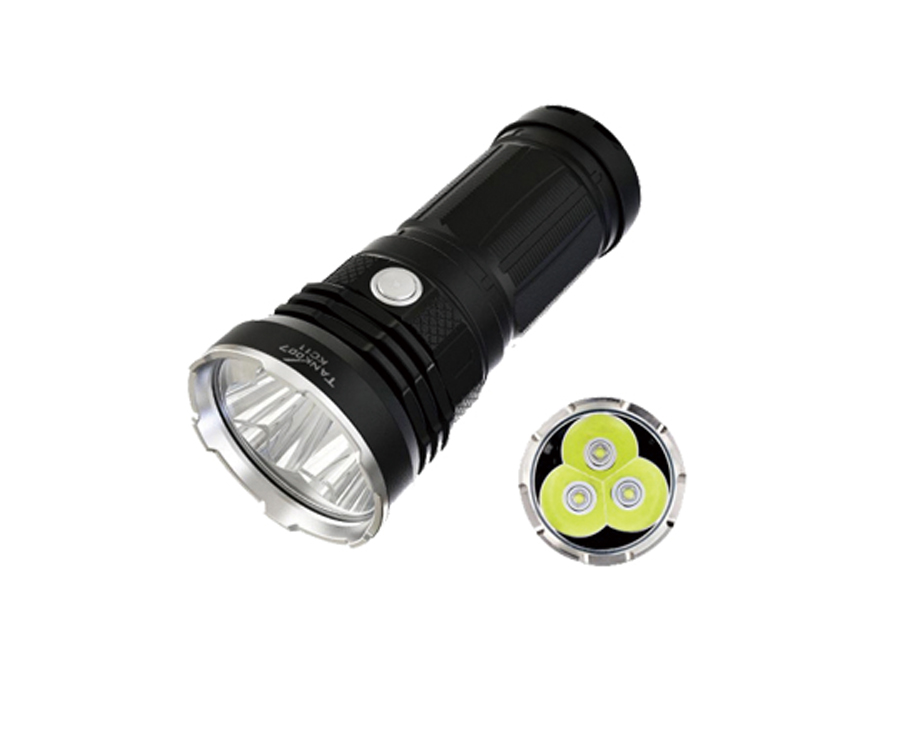

KC11 is an ultra-bright multi-functional search flashlight. It adopts 3 high-power original imported lamp beads, with a maximum brightness of up to 8000lm and a maximum beam range of 700 meters. It features six output modes including wide flood lighting, strobe and SOS functions. Equipped with 3 rechargeable 18650 lithium-ion batteries, it delivers strong power and ultra-long battery life. It supports USB Type-C direct charging, with charging indicator light and remaining power display. The single-button electronic switch enables easy operation. In addition, electronic key lock/unlock to prevent accidental activation, active temperature control and adaptive output reduction enhance safety, making it a reliable choice for outdoor activities, exploration, search, rescue and more.

Features 1. Ultra-high Output: Adopts 3 high-power original imported lamp beads, with a maximum brightness of 8000lm and a maximum beam distance of 700 meters. 2. Multi-level Modes: Four lighting modes including ultra-bright, high-bright, medium-bright and low-bright, equipped with strobe and SOS functions, meeting the needs of outdoor activities, search, rescue and other scenarios. 3. Active Temperature Control: Built-in circuit with active temperature control design. When the lamp temperature exceeds 55°C, the output will be automatically and gradually reduced to maintain a proper temperature. 4. Strong Endurance: Equipped with 3 pieces of 18650 power batteries (9000mAh), with a maximum battery life of up to 80 hours. 5. Fast & Convenient Charging: Adopts USB Type-C charging port and cable for reversible plug-in. Supported by 5V-2A high-current charging, it can be fully charged within 5 hours. 6. Electronic Side Button: Triple-click to lock under power-off status to avoid accidental activation for higher safety and reliability. Long press for power on/off, single click to switch lighting modes, and double-click to activate strobe and SOS. 7. Multi-function Indicator Light: Displays remaining power with 3-second prompt (Steady green: 100%-60% power; Flashing green: 60%-30% power; Steady red: 30%-10% power; Flashing red: below 10% power). Charging reminder: steady red during charging, steady green when fully charged. 8. Sturdy & Durable: Made of T6061 aviation-grade aluminum alloy with military-grade Type III anodized surface treatment; 1-meter drop resistance and IPX8 waterproof rating.

Detailed Specifications (For reference and use on all platforms) I. LED Parameters 1. Original imported LED beads 2. LED Power: 3 pcs × 20W 3. LED Lifespan: 50,000 hours 4. LED Color Temperature: 6500K II. ANSI Standard Parameters 1. Luminous Flux (Lumen): Turbo (8000LM) - High (1300LM) - Medium (410LM) - Low (65LM) - Strobe (3000LM) - SOS (2000LM) 2. Runtime: Turbo (2h) - High (5h) - Medium (15h) - Low (80h) - Strobe (3h) - SOS (5h) 3. Maximum Luminous Intensity: 121250cd 4. Maximum Beam Distance: 700 meters 5. Waterproof Rating: IPX8 6. Drop Resistance Height: 1 meter III. Circuit Parameters 1. Operating Voltage Range: 2.8-4.2V 2. Control Mode: <1> In power-off state, triple-click the electronic switch to lock, with high light flashing 4 times; click 3 times or more continuously to unlock. Triple-click unlock defaults to low mode, while four or more clicks unlock to turbo mode. <2> In unlocked state, long press the electronic switch for about 0.5 seconds to power on/off; default to turbo mode after power-on. <3> After power-on, single-click to cycle lighting modes in sequence: Turbo → High → Medium → Low. <4> Double-click the switch in any unlocked state to activate strobe; double-click again to switch to SOS. <5> Single-click to return to normal lighting mode under strobe or SOS mode. <6> Single-click to activate the power indicator in power-off state. 3. Automatic Output Reduction: After about 20 seconds in turbo mode (when temperature exceeds 55℃), the output will automatically decrease and stabilize at around 2000lm. 4. Indicator Function: Single-click the switch to check remaining battery power whether powered on or off. - Steady green light for 3 seconds (Battery voltage ≥ 3.8V) - Flashing green light for 3 seconds (3.8V > Battery voltage ≥ 3.4V) - Steady red light for 3 seconds (3.4V > Battery voltage ≥ 3.0V) - Flashing red light for 3 seconds (Battery voltage < 3.0V) Red indicator light during charging; green indicator light when fully charged. IV. Battery Specifications 1. Battery: Three parallel 18650 rechargeable high-capacity lithium-ion power batteries (3×3000mAh) 2. Charging Port: USB Type-C (Note: Charging while powered on keeps the current output mode; the flashlight only supports low-brightness mode when powered on after charging.) 3. Charging Current: 5V-2A (fully charged in 5 hours) V. Physical Specifications 1. Dimensions (Head Diameter × Body Diameter × Length): 60*45*134 mm 2. Weight: 325g (excluding batteries) 3. Switch Type: Electronic side button 4. Housing Material: 6061 T6 aviation-grade aluminum alloy 5. Reflector: Vacuum electroplated aluminum reflector 6. Lens: Tempered glass optical lens 7. Surface Treatment: Military Grade Type III hard anodization 8. Color: Black
