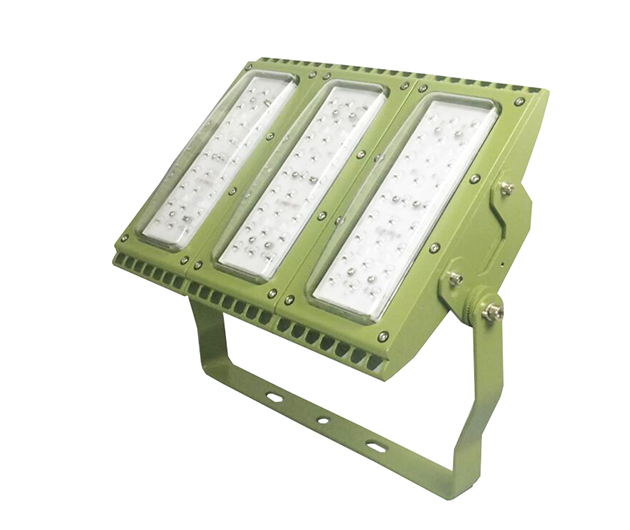

LED Solid-state Module Explosion-proof Light

Model: HPB1101 Series

certification:CCC

Leave a Message >

Product Features: ◆ Lightning protection design. The lamp housing is made of die-cast aluminum alloy, with high strength, outstanding corrosion resistance, weather resistance and heat dissipation performance. ◆ Adopts optical reflective cup, UV-resistant and high luminous efficiency, with 120Lm/W available as an option. ◆ 120° beam angle, meeting the lighting demands of various application scenarios. ◆ Equipped with a high-efficiency constant current driver and supports wide voltage input, applicable to environments with unstable voltage. ◆ IP66 ingress protection rating with structural waterproof performance, suitable for both indoor and outdoor use. ◆ Intelligent control system, wired and wireless connection optional, featuring humanized design.

Product Model

HBP-1101-400W

Optional Power

400W

Luminous Flux

48000LM

Input Voltage

AC100~277V

Beam Angle

120°

Correlated Color Temperature

3000K-6500K Optional

Color Rendering Index

80

Power Factor

0.95

Overall Lamp Luminous Efficiency

120Lm/W

Protection Class

IP66

Service Life

≥50,000 Hours

Working Environment

-30~+60℃

Mounting Method

Bracket Mounting

Dimensions

630*622*mm

Gross Weight

24.8kg
