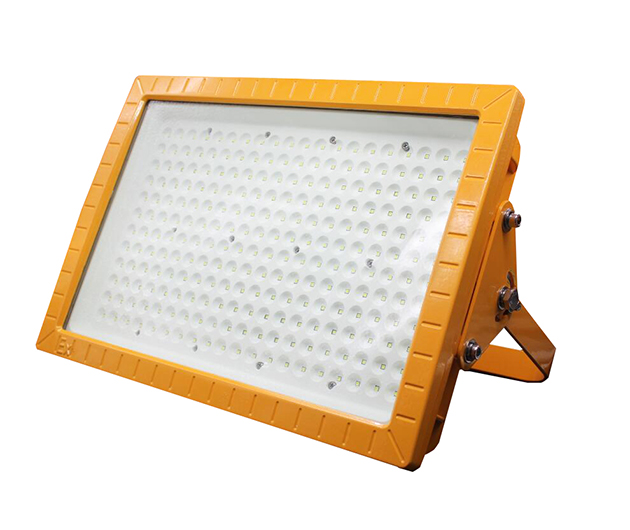

LED Solid State Explosion-proof Lamp

Model: HPB1001Series

certification:CCC

Leave a Message >

Product Features: ◆ Die-cast with high-quality aluminum alloy and finished by high-voltage electrostatic spraying; ◆ Exposed fasteners made of high corrosion-resistant stainless steel; ◆ Tempered glass resistant to 4J high-energy impact, with heat resistance, thermal deformation resistance and high light transmittance; ◆ Separated structure of light source cavity and electrical cavity, effectively preventing heat transfer from the light source cavity to the power cavity; ◆ Fin heat dissipation structure on the housing surface realizes natural air cooling through air circulation, delivering excellent heat dissipation performance, reducing light attenuation and extending service life; ◆ Custom constant-current and constant-voltage drive power supply with wide voltage input and constant power output; power factor cosφ ≥ 0.95. It is equipped with multi-channel shunting, constant current, surge protection, over-current protection, open-circuit protection, short-circuit protection and other functions. The anti-interference power grid design ensures stable power supply and quick start-up; ◆ Secondary light distribution system designed by professional optical software with reasonable beam distribution, uniform illuminance and high reflection & light utilization efficiency; ◆ Emergency device can be installed on demand. The lamp will automatically switch to emergency lighting mode in case of power failure; ◆ Available for steel pipe wiring or cable wiring. --- Application Places: ◆ Suitable for Zone 1 and Zone 2 hazardous areas with explosive gas atmosphere; ◆ Applicable to explosive gas environments of Class ⅡA, ⅡB and ⅡC; ◆ Suitable for Zone 21 and Zone 22 combustible dust environments; ◆ Adaptable to environments with temperature class T1~T6; ◆ Mainly used for factory area and road lighting; ◆ Ideal for environments with corrosive gas, high humidity and high protection requirements.

No.

Item

Parameters

1

Input Voltage

AC100-277V

2

Frequency Range

50/60 Hz

3

Rated Power

30-40W

50-100W

120-200W

250-300W

4

Product Weight

4.5KG

6.6KG

8.6KG

14.5KG

5

Shell Type

IV

6

Power Factor

0.95

7

Rated Correlated Color Temperature

3000K-6500K Optional

8


Color Rendering Index

70

9

Luminous Efficacy

100lm/W

10

Luminaire Efficiency

≥90%

11

IP Rating

IP65

12

Corrosion Resistance Grade

WF2

13

Insulation Class

I

14

Cable Entry Specification

G3/4"

15

Suitable Cable

Ф10mm~14mm

16

Executive Standard

GB3836.1、GB3836.2、GB12476.1、GB12476.5

17

Explosion-proof Marking

ExdembC T5 Gb/Ex tD A21 IP65 T95
