Smart Lighting for Stadium & Sports Court

Model: HPG7202 Series

Certification:CCC、CQC、CE、ROHS

Leave a Message >

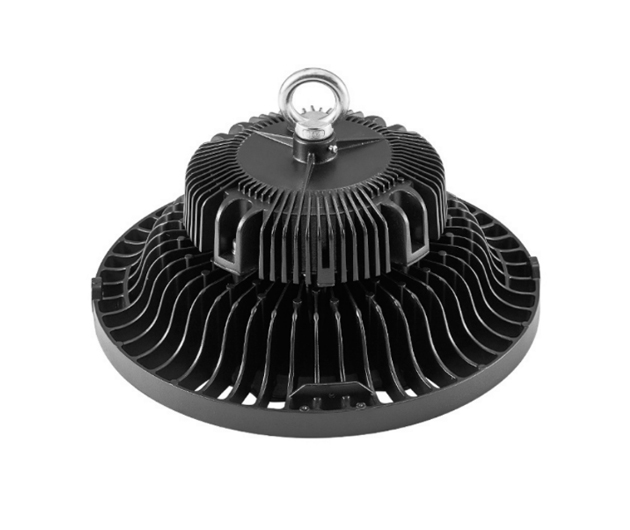

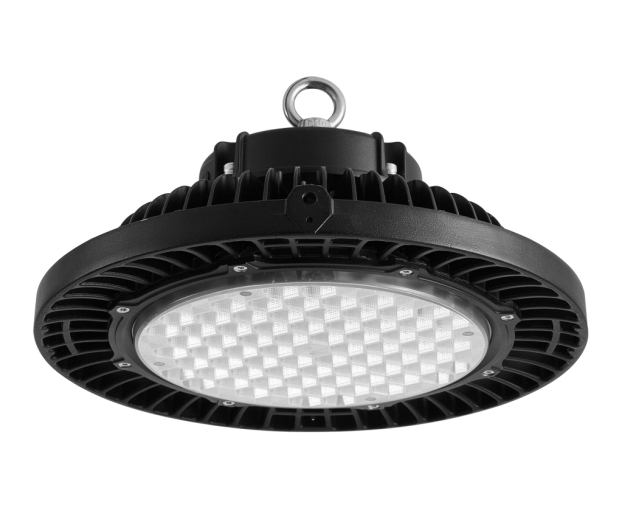

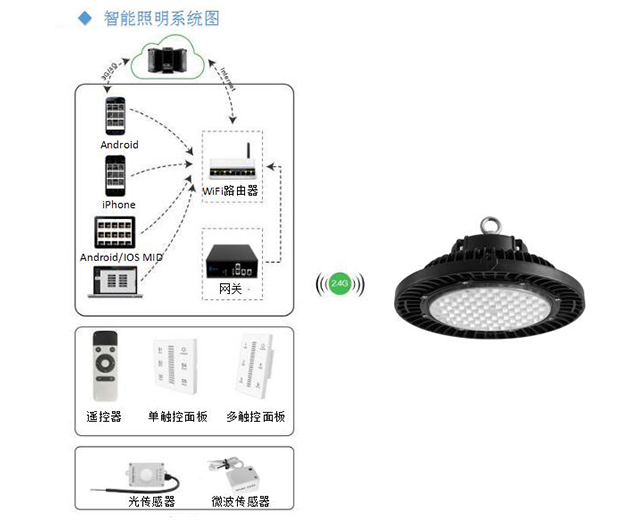

Product Overview The HPG7202 high bay light is a new-type lighting fixture that adopts high-brightness LED as the light source. Featuring an innovative structural design, it delivers moistureproof, waterproof and ventilated heat dissipation performance, and allows easy assembly, production and on-site maintenance. Advantages 1. Custom mold design with die-cast aluminum housing; 2. High luminous efficiency and long service life; 3. 60° beam angle, UGR<19; 4. Anti-glare design; 5. Compatible with intelligent control system; 6. IP65 protection rating. Application Scenarios Widely used in workshops, factories, warehouses, stadiums, shopping malls, offices, toll stations, gas stations, exhibition halls and other places.

Product Model

HPG7202-100W

HPG7202-150W

HPG7202-200W

HPG7202-240W

Optional Power

100W

150W

200W

240W

Luminous Flux

13000LM

18750LM

24000LM

27600LM

Input Voltage

AC100~277V

Beam Angle

60°

Correlated Color Temperature

3000K-6500K Optional

Color Rendering Index

70

Power Factor

0.95

Overall Lamp Luminous Efficiency

130LM/W

125LM/W

120LM/W

115LM/W

IP Rating

IP65

Service Life

≥50,000 Hours

Working Environment

-30~+60℃

Installation Method

Lifting ring installation; Bracket installation

Dimensions

Φ270*142mm

Φ300*160mm

Φ330*166mm

Φ330*166mm

Product Net Weight

2.9kg

3.8kg

5.2kg

5.2kg
