Product Brief:

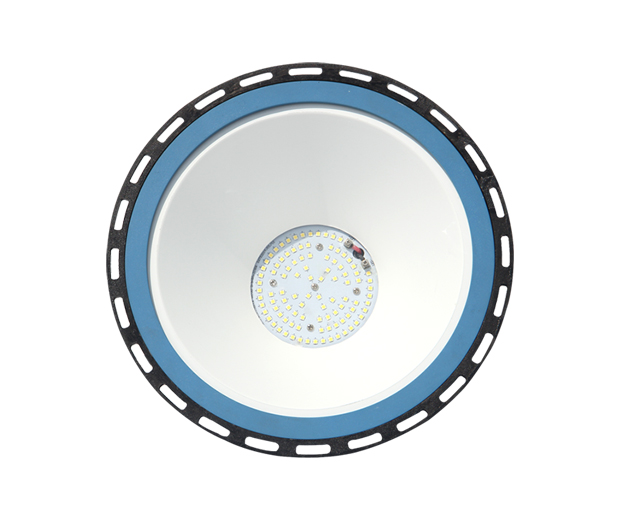

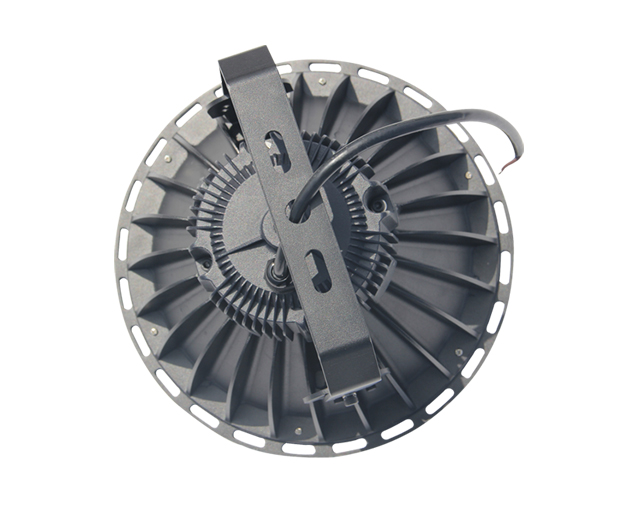

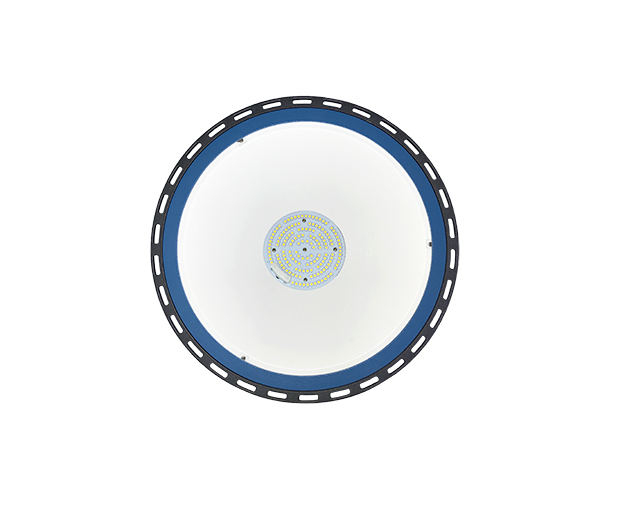

The HPG2002 series high bay light is a new-type lighting fixture with high-brightness LED as the light source. Adopting an innovative structural design, it features moistureproof, waterproof and high-efficiency heat dissipation performance, as well as easy assembly, production and on-site maintenance.
Advantages:
◆ Custom mold design and die-cast aluminum housing with integrated die-casting molding, simple and elegant appearance with excellent heat dissipation;
◆ High luminous efficiency, optional from 120lm/W to 150lm/W;
◆ Optional beam angles: 45°/90°/120°, meeting lighting demands of various occasions;
◆ Unique AG anti-glare glass with professional anti-glare design, UGR<19;
◆ Support 1-10V dimming and microwave sensor installation;
◆ IP65 protection rating, suitable for indoor and outdoor use;

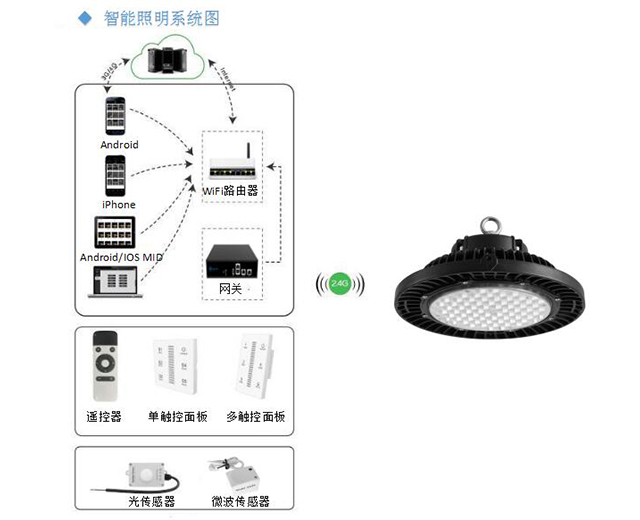

◆ Compatible with intelligent control, humanized design.
Optional Power: 100W/150W/200W/240W
Application Sites:
Widely applicable for indoor and outdoor lighting scenarios including stadiums, warehouses, supermarkets, gymnasiums, gas stations, exhibition halls, toll stations, shipyards, mines and other industrial and commercial places.
Product Model | HPG2002-100W | HPG2002-150W | HPG2002-200W | HPG2002-240W |
Optional Power | 100W | 150W | 200W | 240W |
Input Voltage | AC100~277V | |||
Beam Angle | 45°/90°/120° | |||
Correlated Color Temperature | 3000K-6500K Optional | |||
Color Rendering Index | ≥70 | |||
Power Factor | ≥0.95 | |||
System Lumen Efficacy | 120lm/W±10% | |||
IP Rating | IP65 | |||
Service Life | ≥50,000 Hours | |||
Working Environment | -30~+60℃ | |||

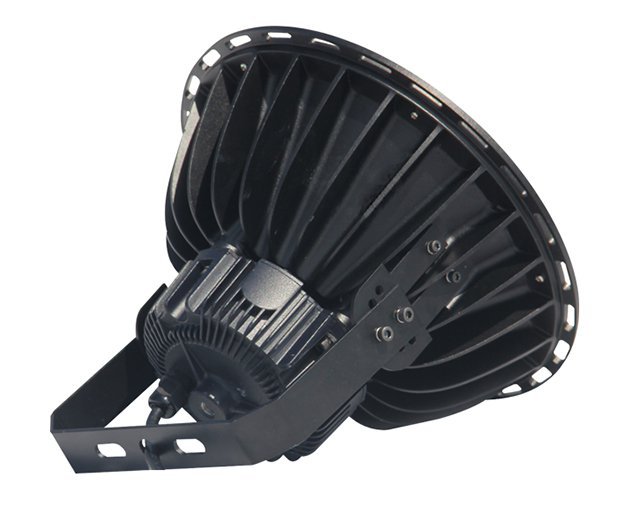

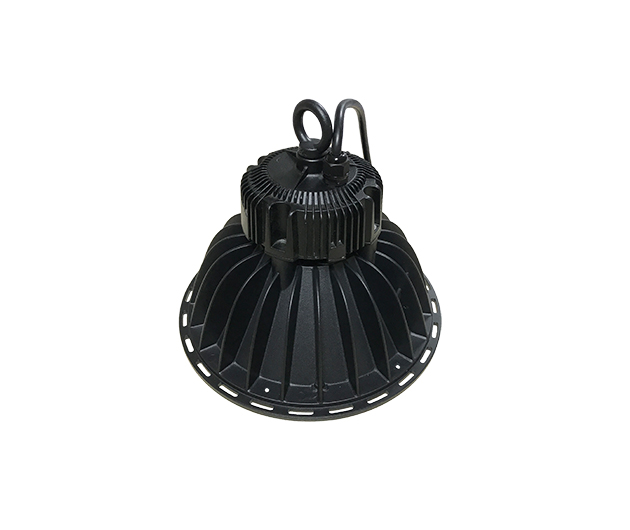

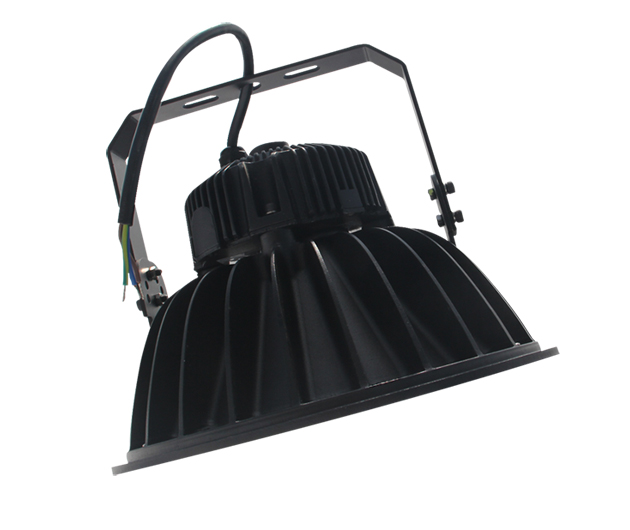

Installation Method | Lifting ring installation; Bracket installation | |||

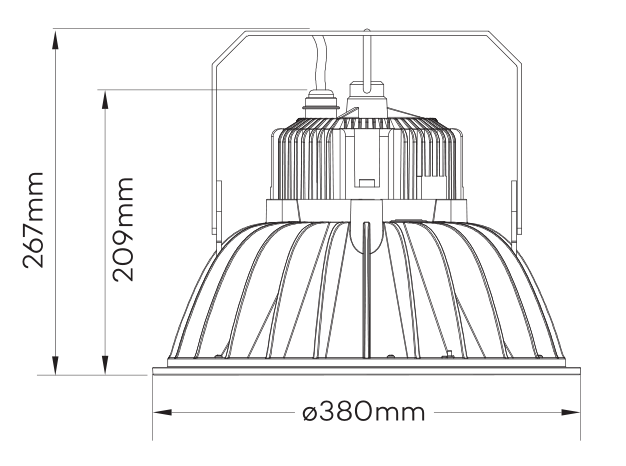

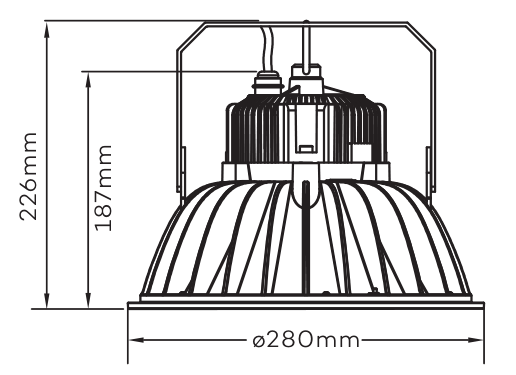

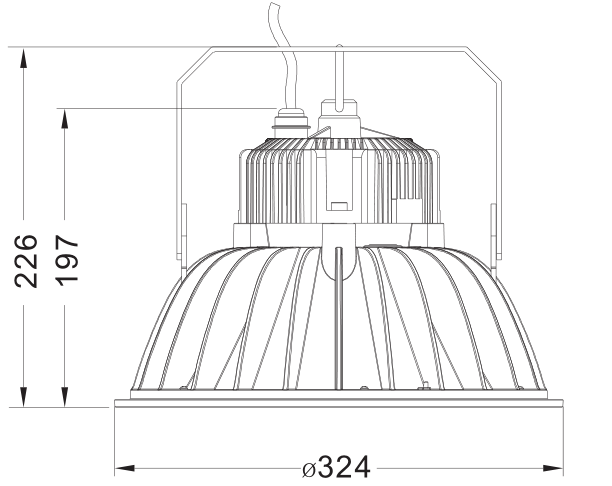

Dimensions | Φ280*187mmmm | Φ324*197mm | Φ380*209mm | Φ380*209mm |
Product Net Weight | 5kg | 7kg | 7kg | 7kg |
