LED Air Dome Flood Light

Model: HPG7201Serie s

Certification:上传完成

Leave a Message >

Product Features: ◆ High luminous efficacy, optional from 120lm/W to 150lm/W; ◆ Suspension rod mounting and electric ring mounting to meet installation demands of various lighting sites; ◆ 5-year long warranty; ◆ IP65 protection grade, meeting indoor application requirements; ◆ Available for intelligent control with humanized design. Application: Suitable for lighting places such as industrial workshops, shopping malls, offices and indoor stadiums.

Product Model

HPG7201-240W

HPG7201-320W

Optional Power

240W

320W

Input Voltage

AC100~277V

Beam Angle

120°

Color Rendering Index

70

80

System Lumen Efficacy

120Lm/W-150Lm/W

IP Rating

IP65

Service Life

50,000 Hours

Working Environment

-30~+60℃

Installation Method

Suspension rod installation, Lifting ring installation

Dimensions

533*300*104mm

675*300*104mm

Product Net Weight

4.5KG

5.3KG

Product Model

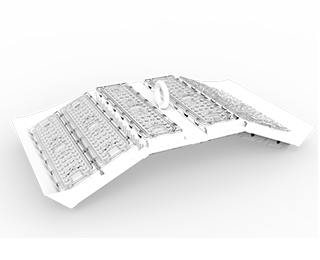

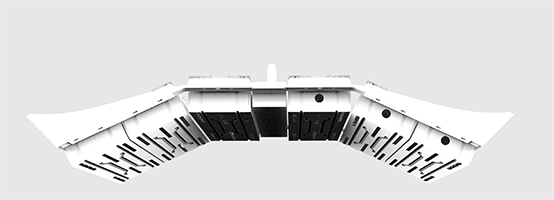

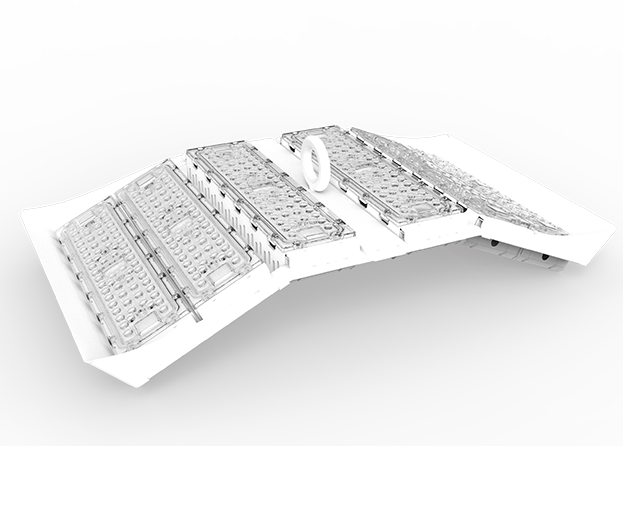

Product Images

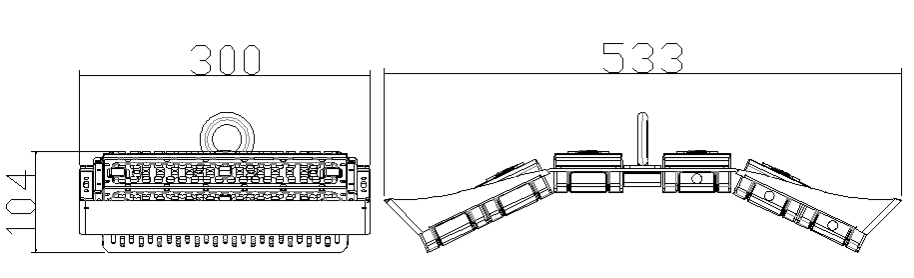

Structural Dimension Drawing

HPG7201-240W




HPG7201-320W
