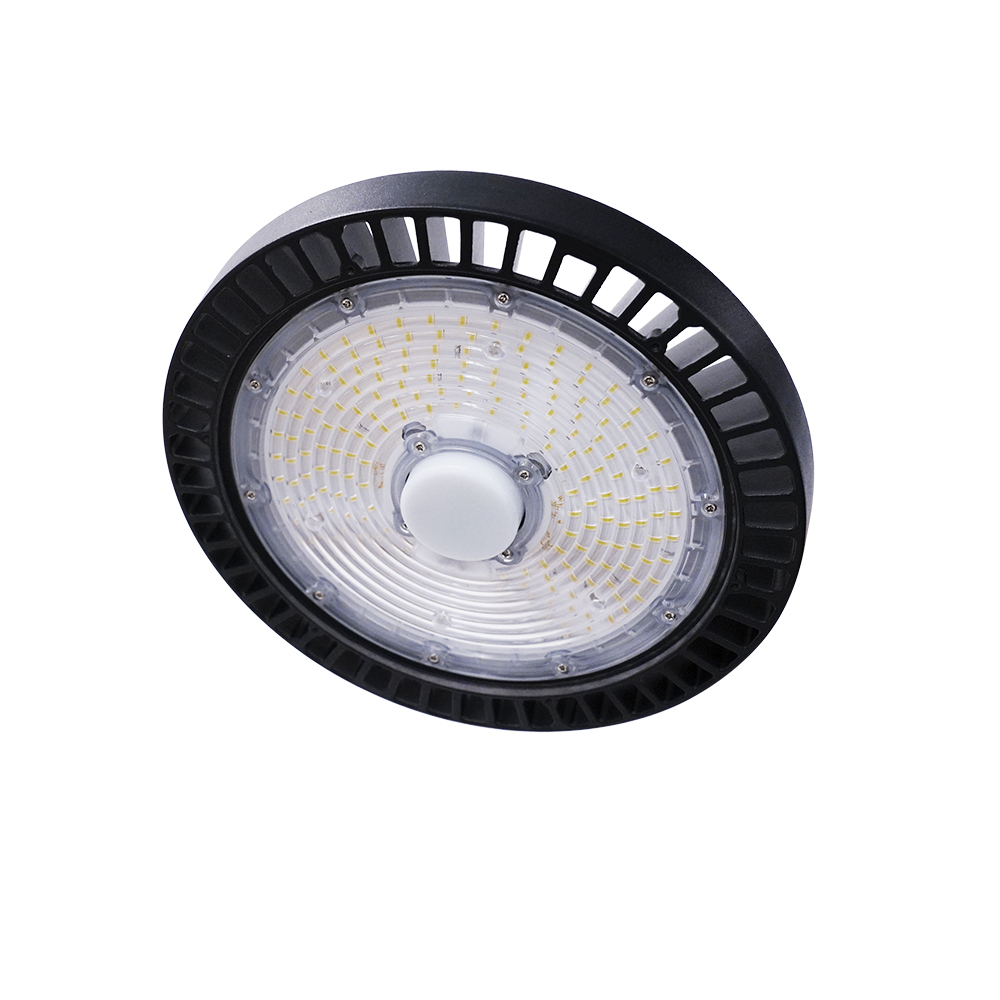

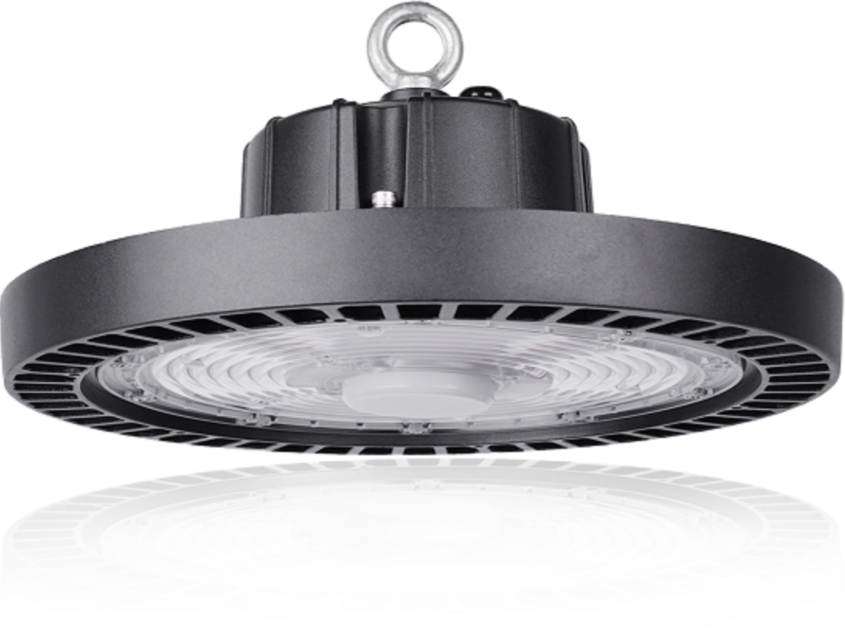

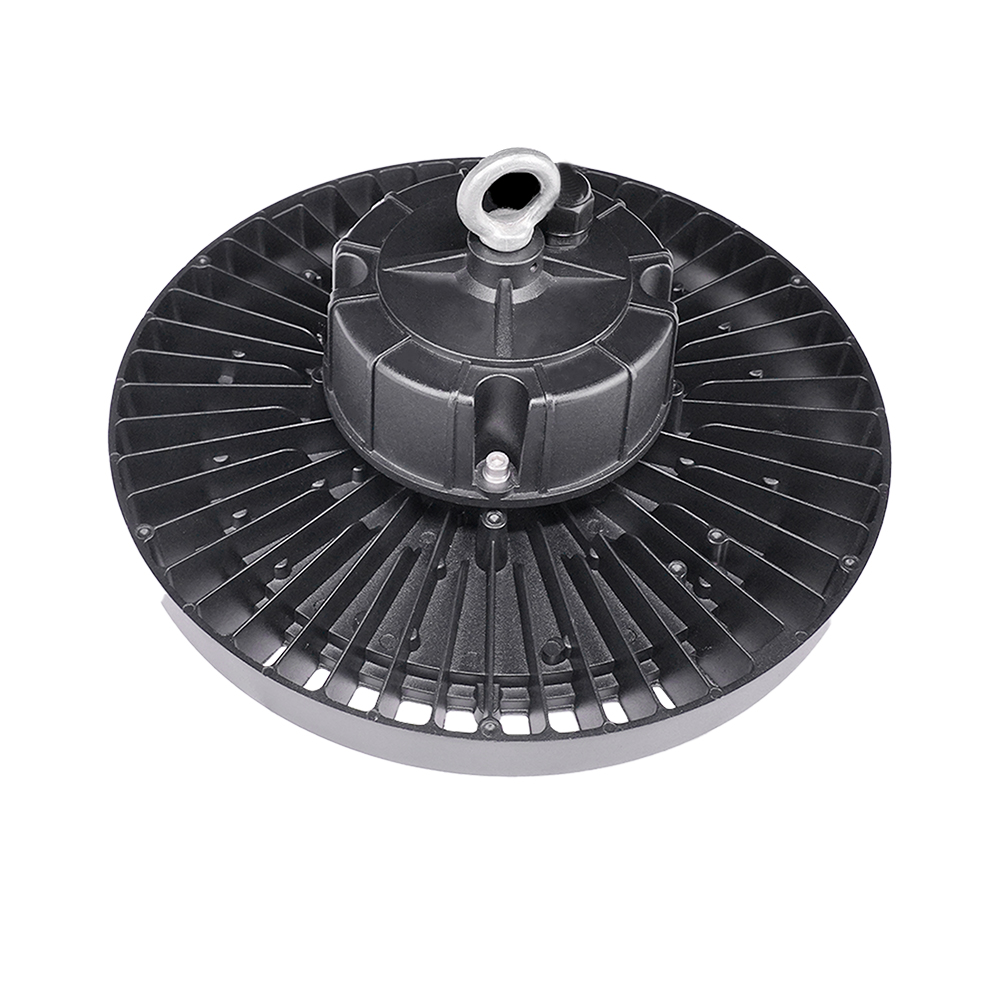

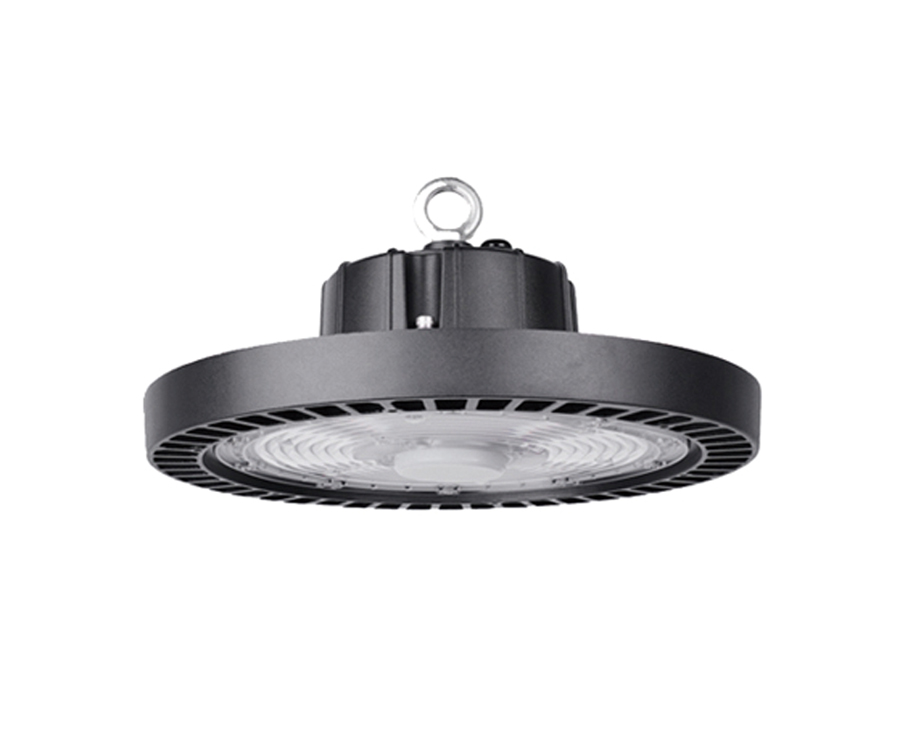

The HRZC-HXJ series high bay lights are integrally die-cast from thickened aluminum with a hollow heat dissipation design. Featuring excellent corrosion resistance, rust prevention and high protection performance, they are suitable for various industrial and commercial lighting scenarios such as factories, workshops, warehouses, supermarkets and shopping malls.
- ZigBee mesh intelligent control. - Equipped with light sensor and motion sensor as standard; partition and grouping can be easily realized via remote control without a gateway. - Features automatic on/off or dimming with intelligent sensing (illuminance, motion) for maximum energy savings. - Luminous efficacy up to 190LM/W, with 50% lower power consumption than traditional light sources. - Die-cast heat dissipation structure ensures stable heat dissipation and long service life.
| Product Model | Rated Voltage | Lamp Power | Lamp Weight | Lamp Dimensions |
HRZC-HXJ-100 | 220V 50Hz | 100w | 2.1kg | Φ255*H152mm |
HRZC-HXJ-150 | 220V 50Hz | 150W | 2.4kg | Φ295*H152mm |
HRZC-HXJ-200 | 220V 50Hz | 200W | 3.1kg | Φ335*H152mm |
Product Model | HRZC-HXG-100 | HRZC-HXG-150 | HRZC-HXG-200 |
Product Power | 100w | 150W | 200W |
Input Voltage | AC200-240V 50/60Hz | ||
Luminous Color Temperature | 4000k/5000k/6000k | ||
Color Rendering Index | Ra≥80 | ||
Luminous Efficacy of Whole Lamp | 150lm/170lm/190lm | ||
Luminous Flux | 15000lm/17000lm/19000lm | 22500lm/25500lm/28500lm | 30000lm/34000lm/38000lm |
Power Factor | PF≥95%(高功率因数） | ||
IP Rating | IP65 | ||
Sensing Angle | 120° | ||
Working Environment | -30℃-50℃ | ||
Warranty Period | 五年 | ||
Product Dimensions | Φ255*H152mm | Φ295*H152mm | Φ335*H152mm |
Product Weight | 2.1Kg | 2.4kg | 3.1kg |
Installation Method | 吊装（吊杆/吊链） | ||
Product Lifespan | ≥50000个小时 | ||
