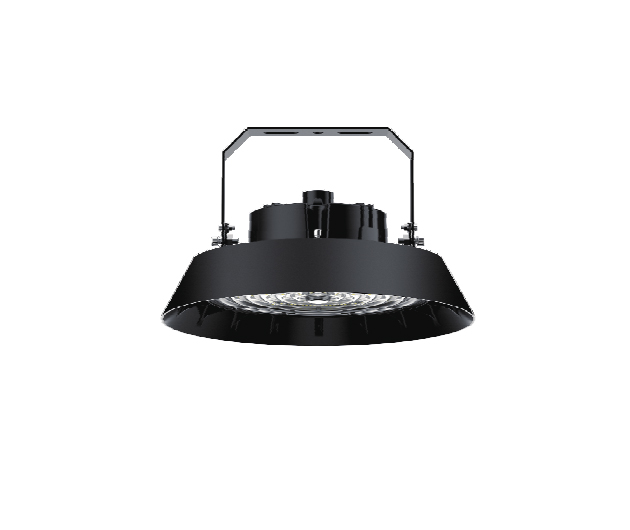

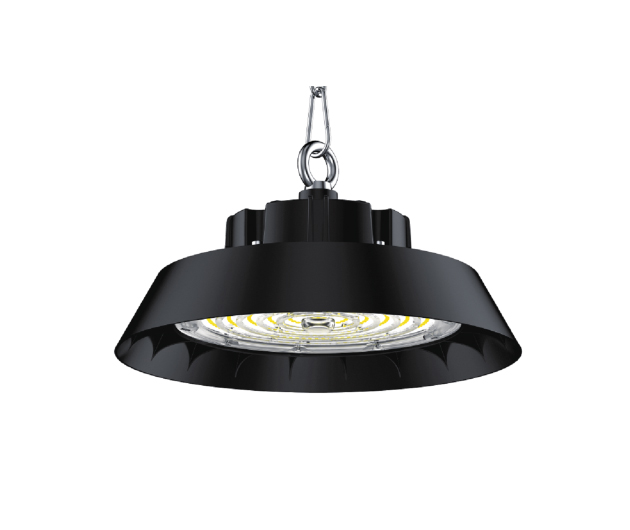

LED Solid-State High Bay Light

Model: HPG2004 Series

Certification:CCC


Leave a Message >

Product Overview The HPG2004 industrial and mining lamp is a new type of lighting fixture using high-brightness LEDs as the light source. With an innovative structural design, the product features moisture resistance, water resistance, efficient heat dissipation, and is convenient for assembly, production and on-site maintenance. Advantages 1. Special mould and die-cast aluminum housing. 2. High luminous efficacy and long service life. 3. Optional beam angles: 60°/90°/120°. 4. Anti-glare design. 5. Compatible with intelligent control systems. 6. Protection class IP65. Applications Workshops, factories, warehouses, stadiums, shopping malls, offices, toll stations, gas stations, exhibition halls and other places.

Product Model

HPG2004-100W

HPG2004-120W

HPG2004-150W

HPG2004-200W

Optional Power

100W

120W

150W

200W

Input Voltage

AC100~277V

Beam Angle

60°90°120°

Correlated Color Temperature

3000K-6500K Optional

Color Rendering Index

≥70

Power Factor

≥0.95

Luminous Efficacy of Whole Lamp

140Lm/W-170LM/W±10%

Ingress Protection Rating

IP65

Service Life

≥50,000 Hours

Working Environment

-30~+60℃

Installation Method

Eye bolt mounting;Bracket mounting

Size

Φ280*175mm

Φ320*174mm

Φ320*174mm

Φ350*194mm

Net Weight

1.9kg

2.4kg

3kg

3.3kg
