Product Features ◆ Anti-glare design with no light spillover; ◆ Complete power specifications, multiple options available from 100W to 200W; ◆ High luminous efficacy, optional from 140lm/W to 170lm/W; ◆ Optional beam angles of 60°/90°/120° to meet lighting demands of various sites; ◆ Original three-dimensional heat dissipation structure with excellent heat dissipation performance; ◆ Extra-long warranty; ◆ Protection class IP66, suitable for both indoor and outdoor use; ◆ Support for intelligent control with user-friendly design. Applications Suitable for large-scale lighting places such as industrial and mining enterprises, warehouses, squares, gymnasiums, gas stations, supermarkets, stations, docks, etc.
Product Model | HPG2003-100W | HPG2003-150W | HPG2003-200W | |
Rated Power | 100W 400W 500W | 150W | 200W | |
Input Voltage | AC100~277V | |||
Beam Angle | 60°/90°/120°Optional | |||
Color Rendering Index | ≥70 | ≥80 | ||
Luminous Efficacy of Whole Lamp | 140Lm/W-170Lm/W | |||
Ingress Protection Rating | IP66 | |||
Service Life | ≥50,000 Hours | |||
Working Environment | -30~+60℃ | |||
Installation Method | Eye bolt mounting | |||
Size | D294*H179mm | D340*H185mm | D364*H191mm | |
Net Weight | 1.8KG | 2.8KG | 3.2KG | |

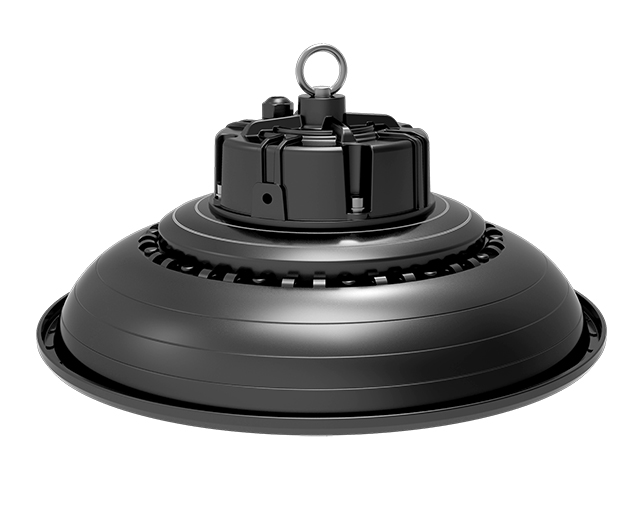

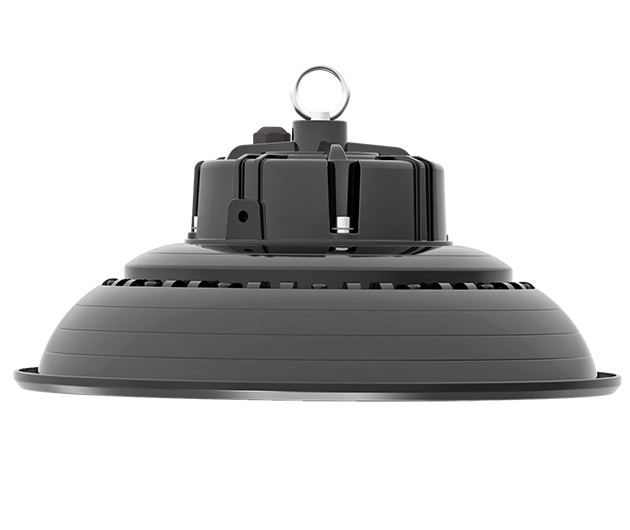

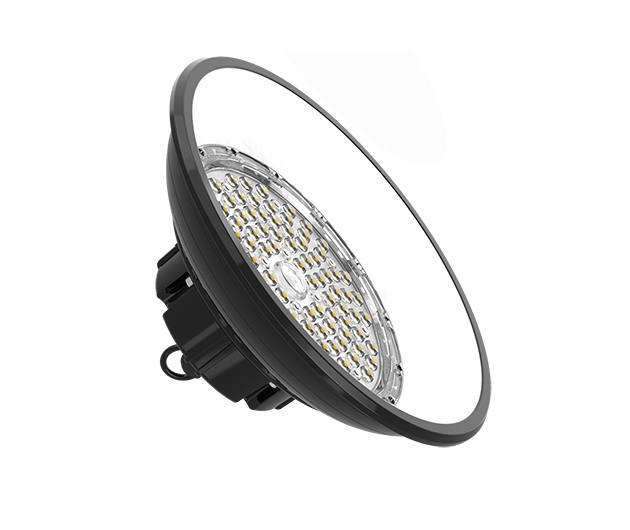

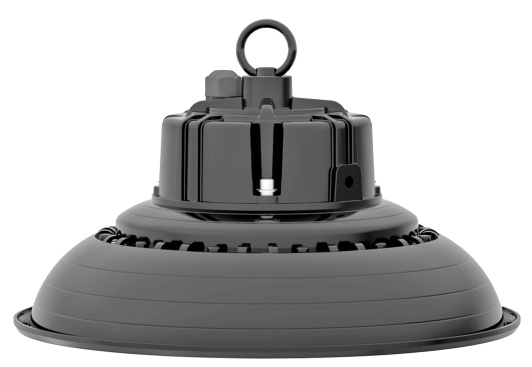

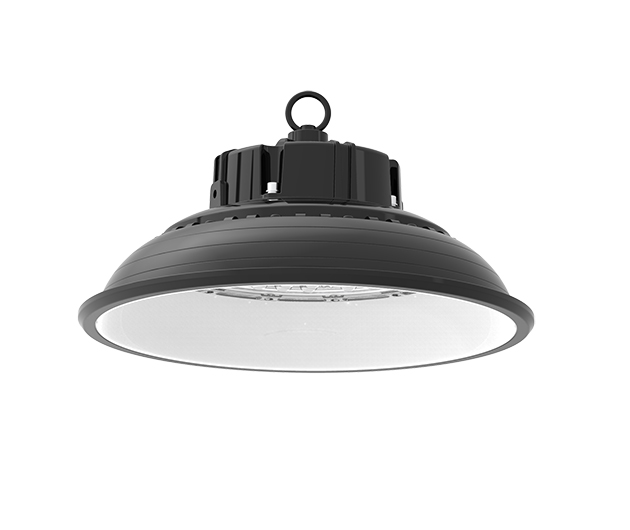

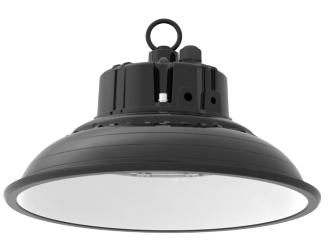

Product Model | Product Image | Structure Dimension Drawing |
HPG2003-100W |
|
|
HPG2003-150W |
|
|
HPG2003-200W |
|
|
